200/400 Watt Solar Panels N-Type 24 Volt 200W Solar Panel 16BB 25.6% High-Efficiency Solar Cell,IP68 24V PV Module Power Charger for Class B Van RV Marine Cabin Roof Home Farm for 12V/24V Systems
【Product Description】

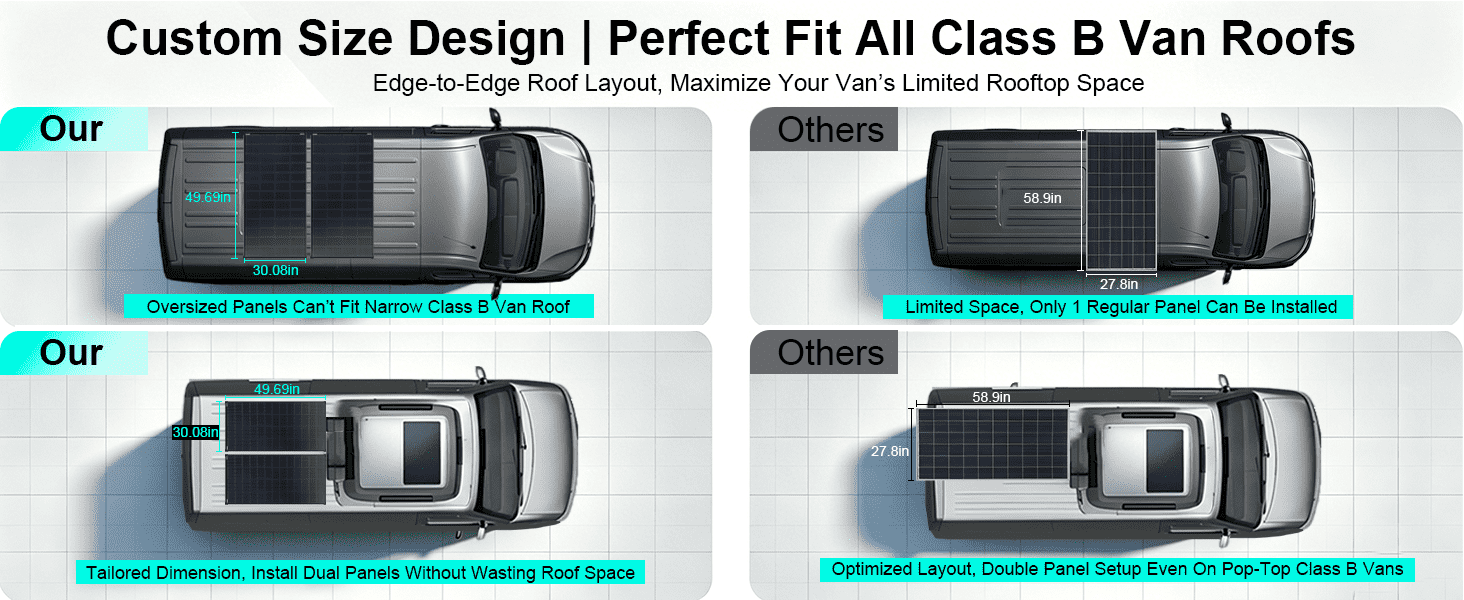

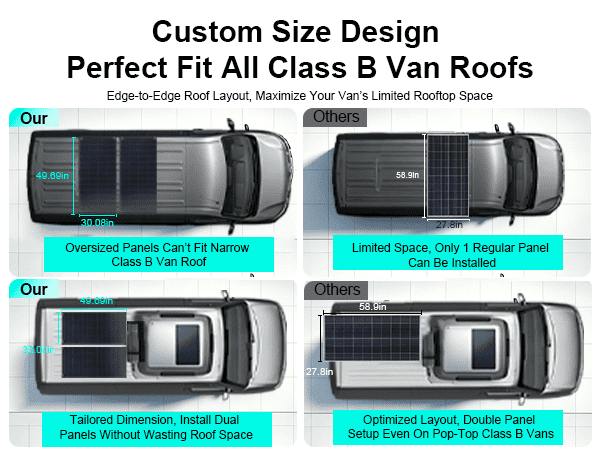

【Compact & Lightweight | Perfect Fit for Class B Vans】 This 200W N-Type solar panel features a streamlined design — 7.5% smaller and 11.7% lighter than traditional models. It maintains full 200W power output while taking up far less room, making it an ideal pick for Class B vans and other vehicles with limited rooftop space. Easy to mount, it maximizes power generation without crowding your van’s compact exterior layout.

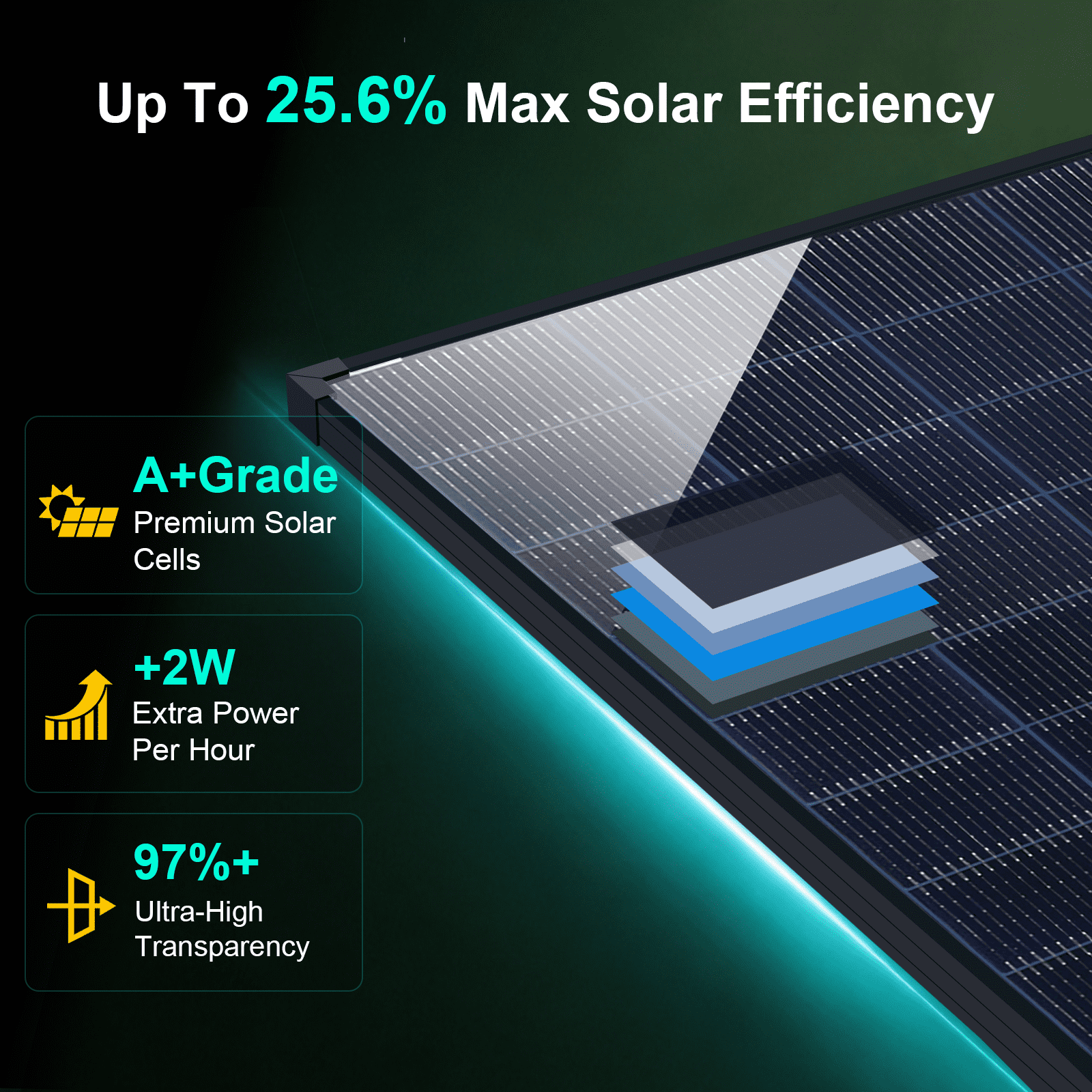

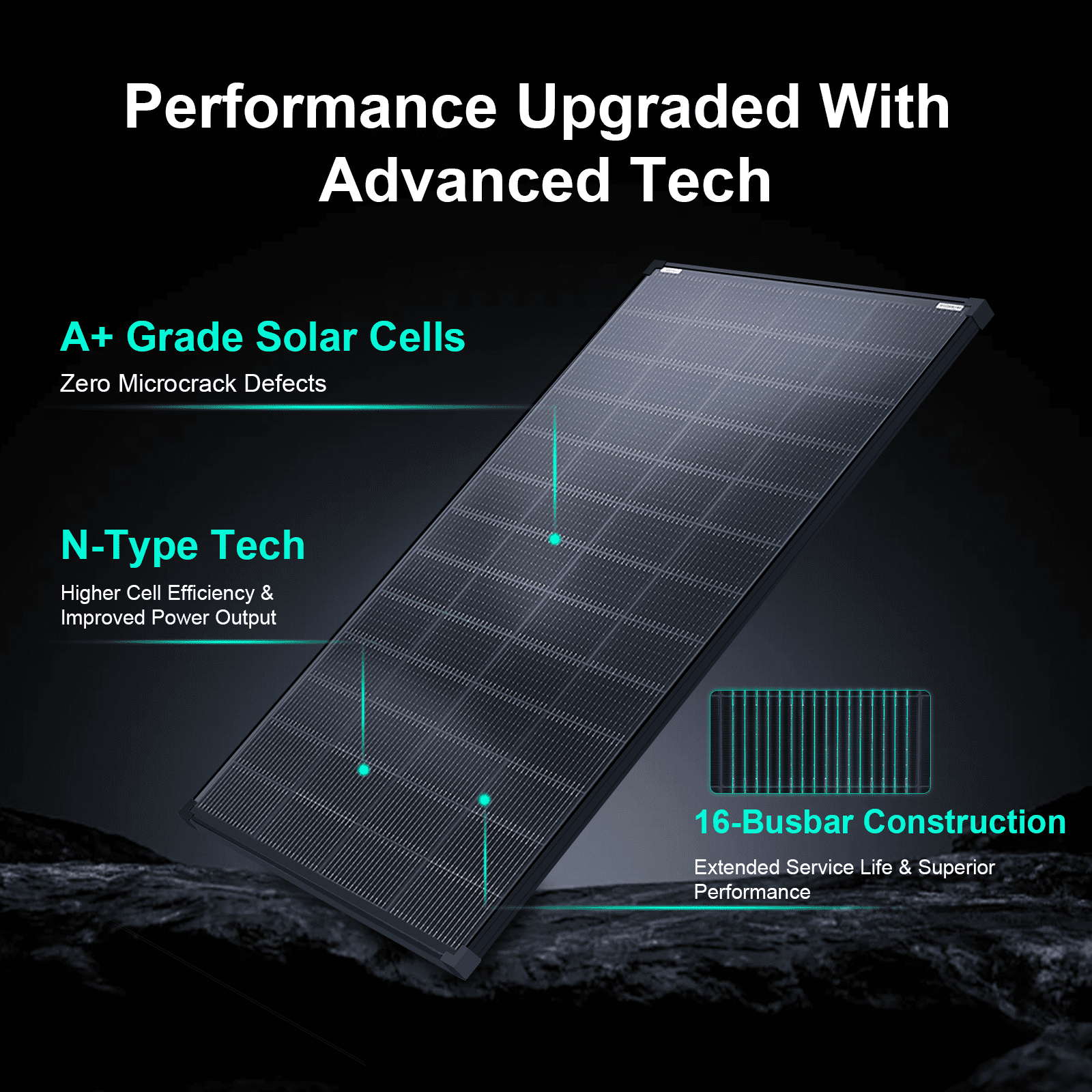

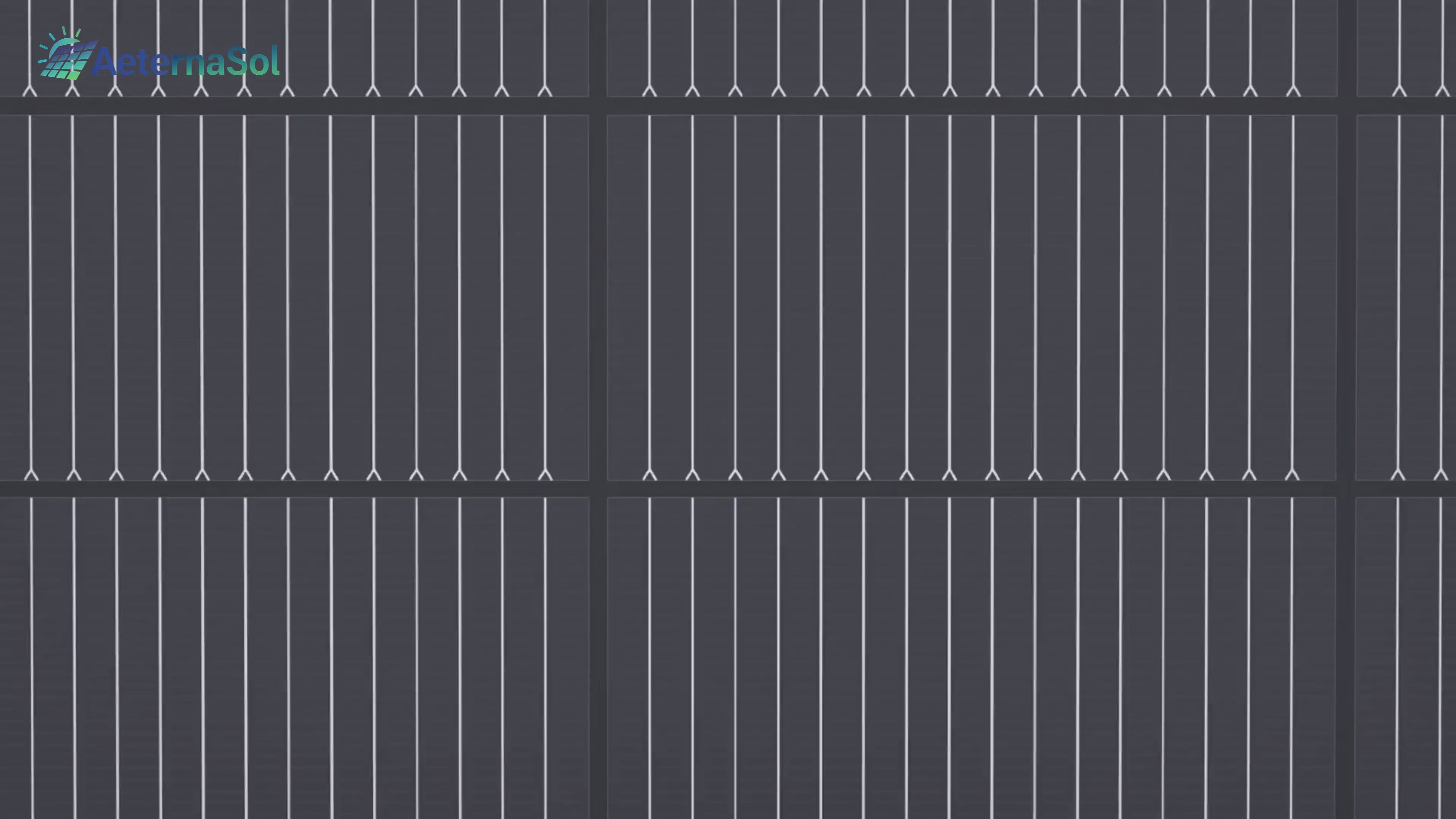

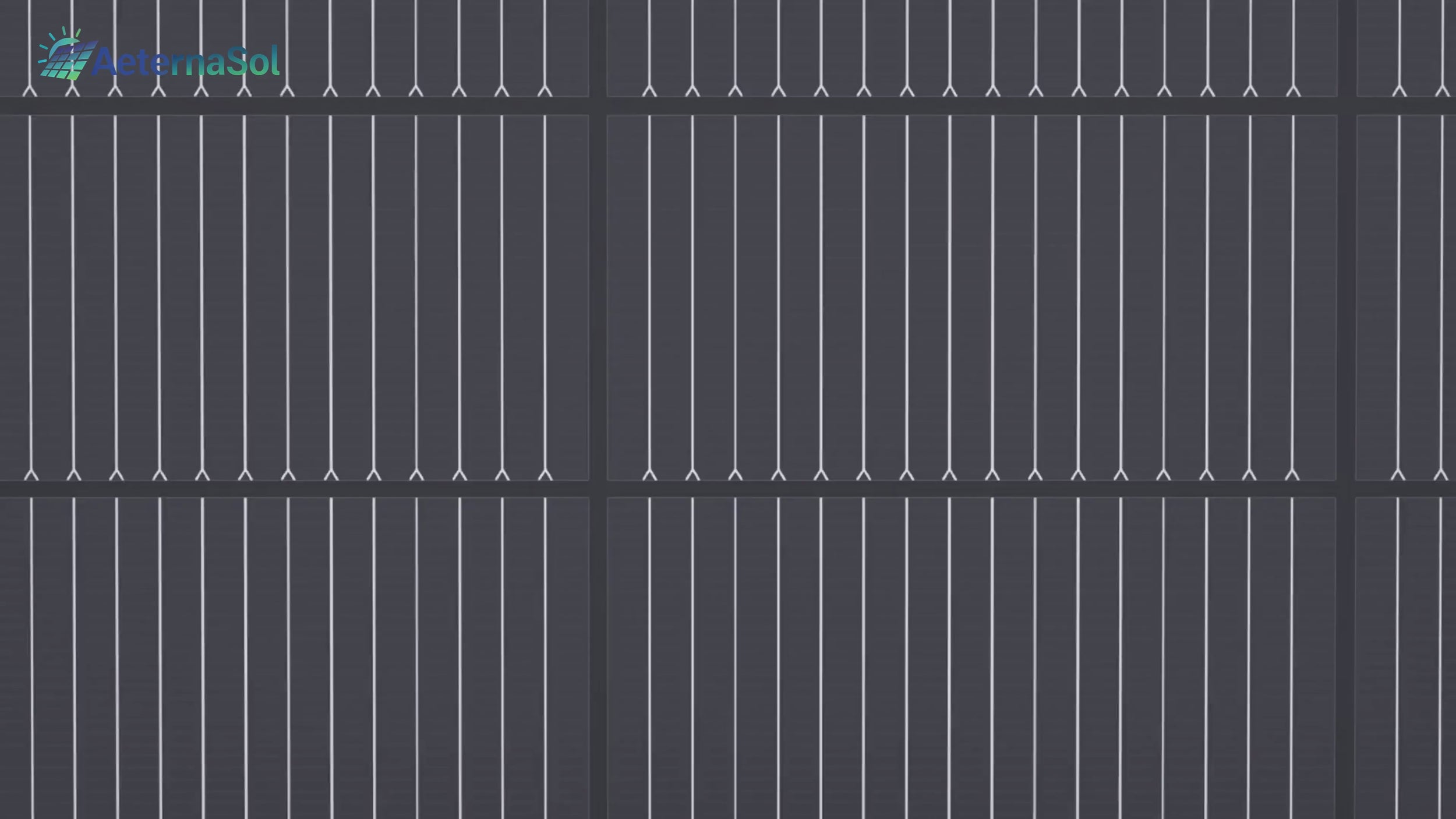

【25.6% Max Efficiency, Stable & Long-Lasting Power】Our AeternaSol 200W solar panel features premium N-Type A+ Grade monocrystalline cells with a 16BB full-welding design, delivering an industry-leading conversion efficiency of up to 25.6% and a peak power output of 230W. Thanks to advanced N-type technology, this panel generates significantly more power in limited space and low-light conditions—ideal for RVs, camping, boats, and off-grid residential use. The 16 busbar layout minimizes internal power loss and microcrack risks, protecting your investment. It also boasts ultra-low degradation (≤1% in the first year, ≤0.4% annually), ensuring consistent, reliable energy output for years to come.

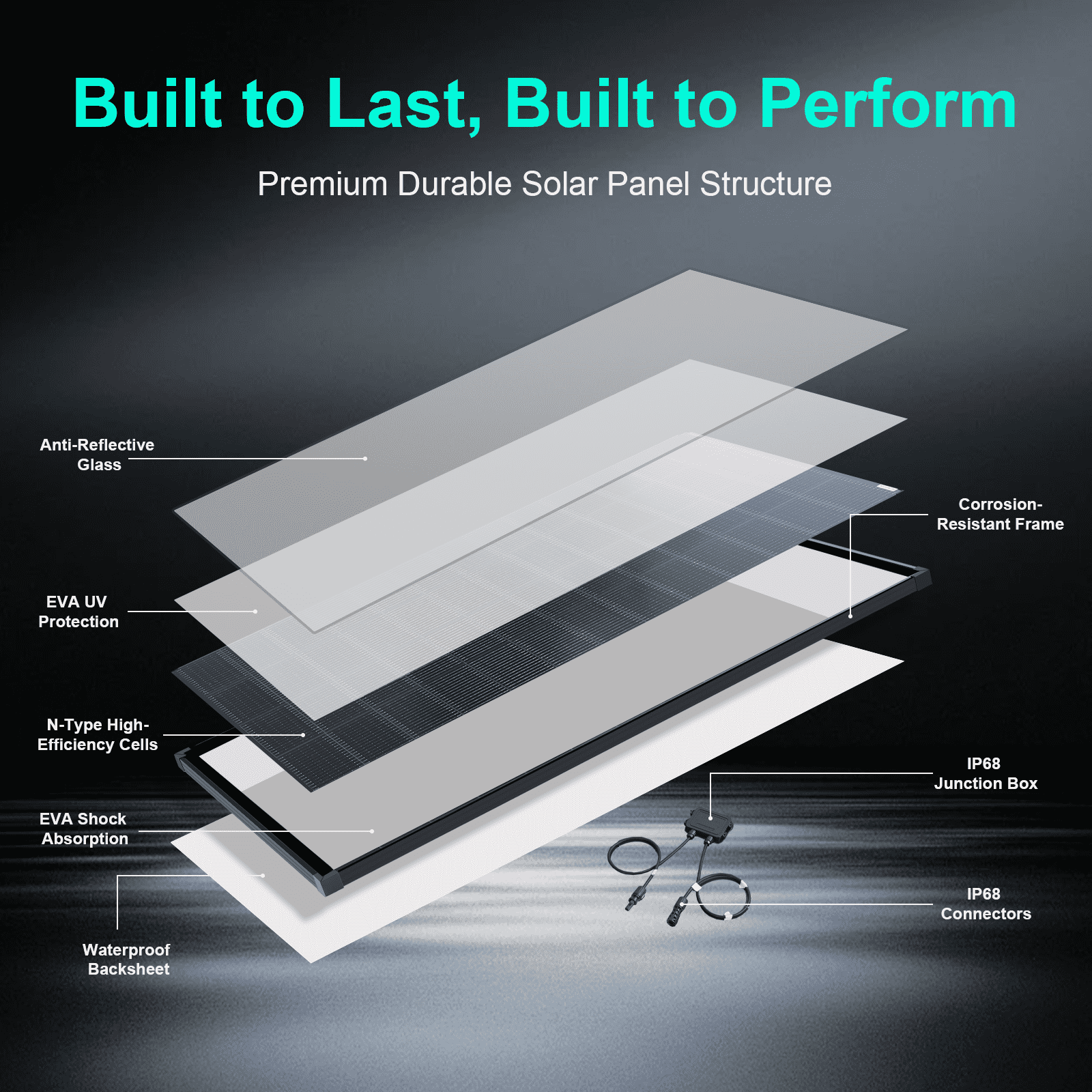

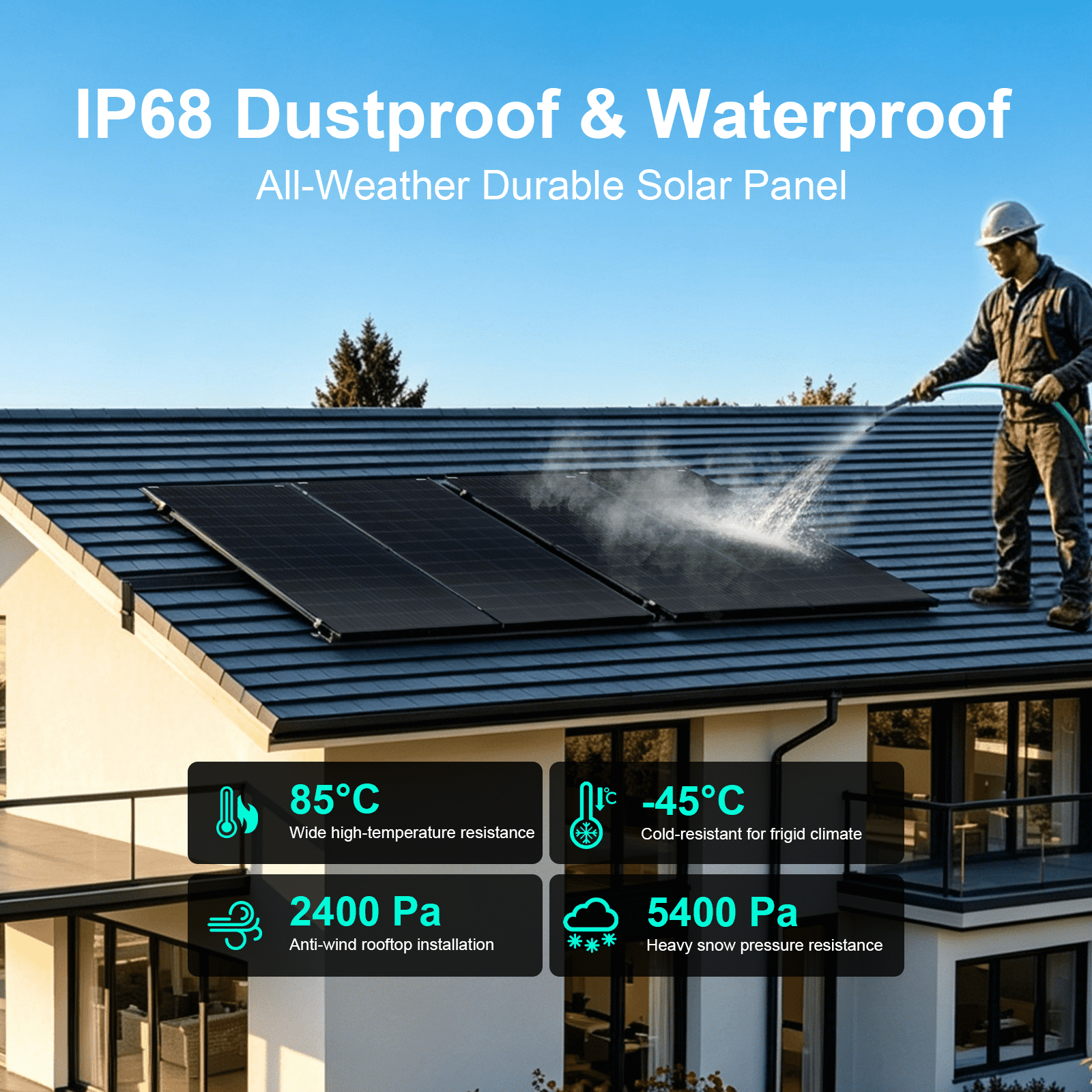

【IP68 Waterproof & All-Weather Durability】 Our 200W N-Type solar panel is fully rated IP68 for superior water and dust resistance. Adopting premium potting technology, it effectively blocks water, vapor and dust ingress to prevent short circuits. Built to withstand heavy rain, high humidity and coastal salt corrosion, it delivers reliable performance for RV, camping and all outdoor off-grid applications. Optimized thermal conductivity accelerates heat dissipation, avoiding overheating, extending service life and requiring zero routine maintenance.

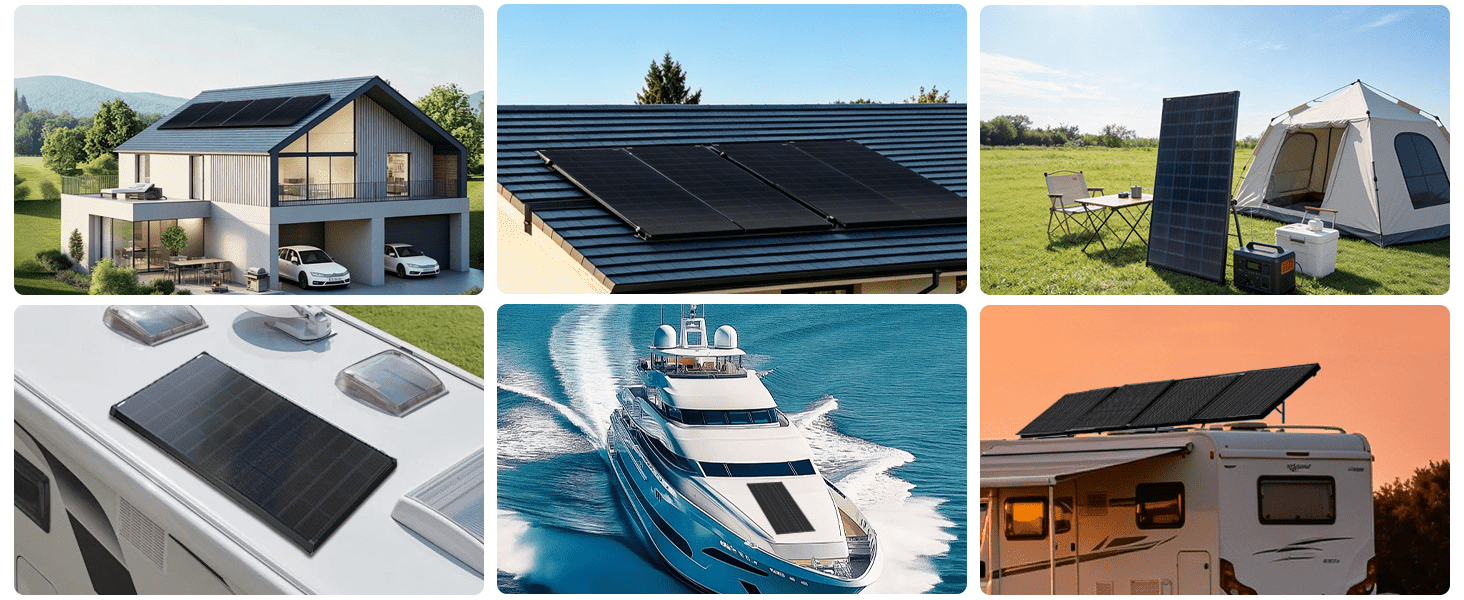

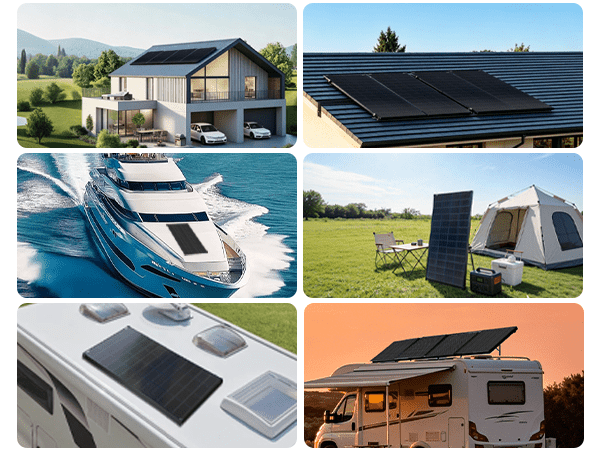

【Enhanced Efficiency & Versatile Compatibility】 Our 200W N-Type solar panel is engineered to minimize current loss, helping you get more usable power and run your entire system more efficiently. Designed for universal use, it supports 12V and 24V batteries widely used on RVs, campers, boats and residential off-grid systems. Thanks to its wide voltage compatibility, you can enjoy free installation choices and no worries about system matching.
【Reliable Output in Hot Climates】 Built with advanced N-Type cells, this solar panel owns a superior temperature coefficient. It retains high power generation even when the temperature rises sharply, effectively avoiding efficiency drop caused by extreme heat. It is a reliable pick for long-term off-grid use in hot environments all year round.
【Item specifics】

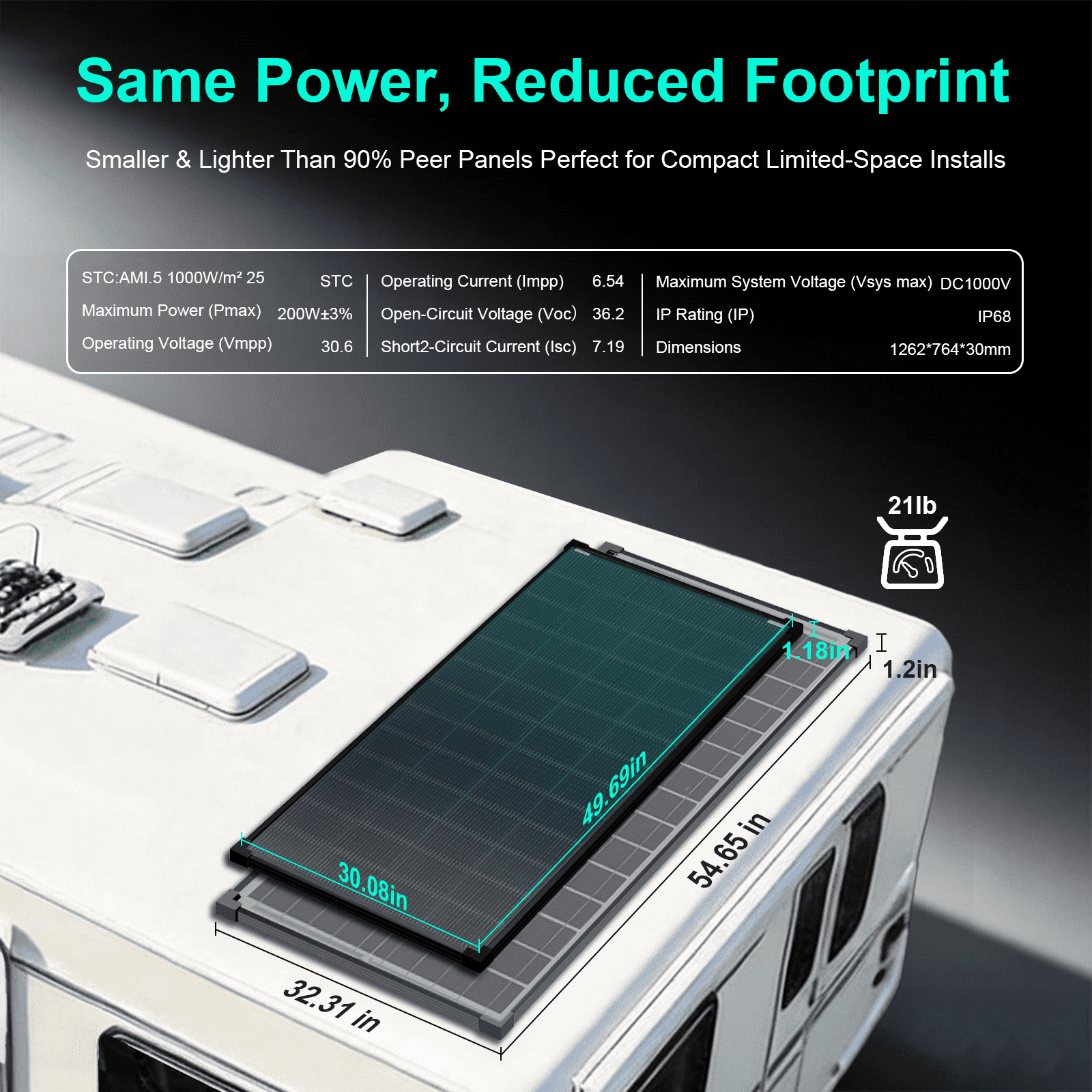

| Parameter | Details |
|---|---|

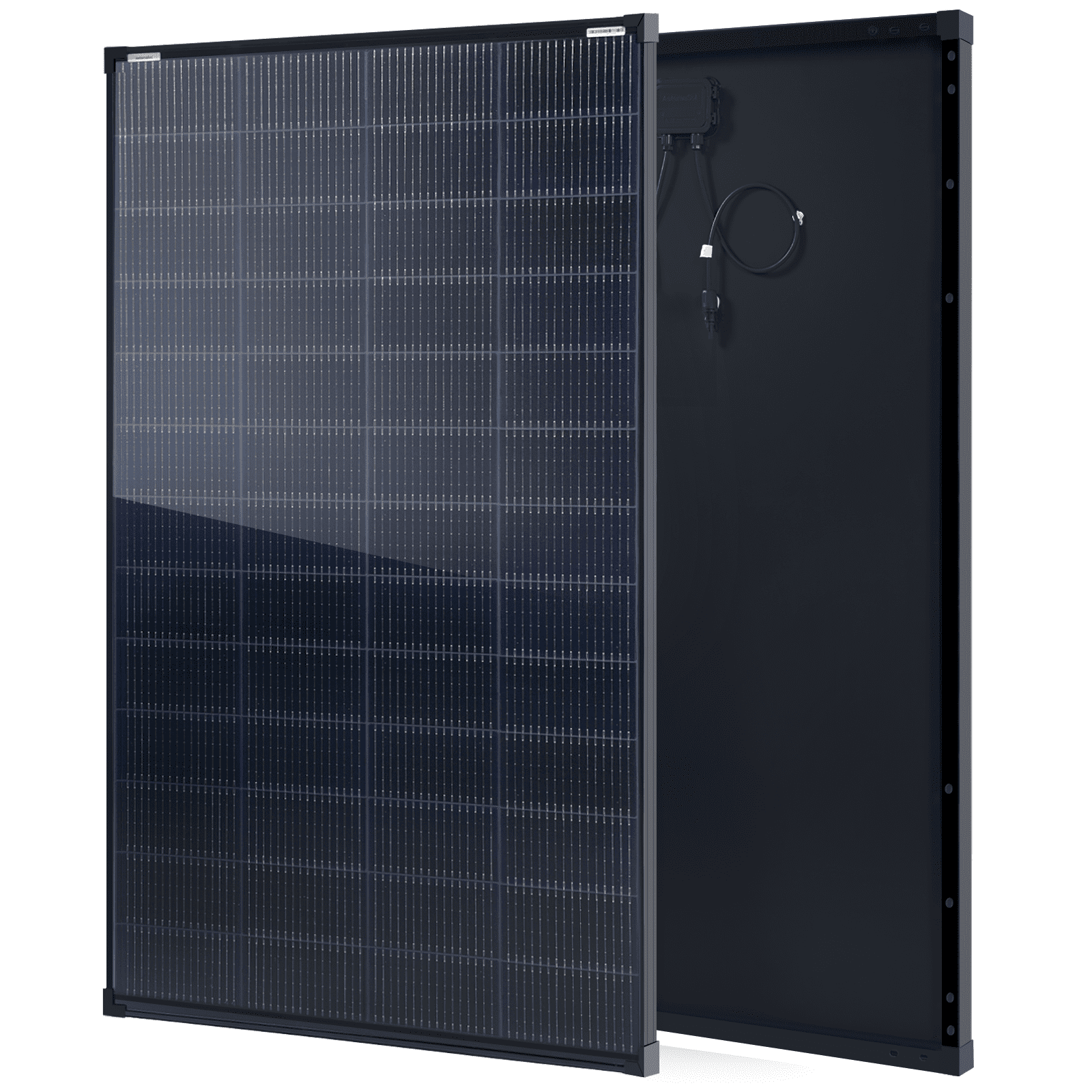

| Type | Monocrystalline Solar Panel (N-Type A+ Cell) |
| Color/Configuration | Black *1 / Black *2 |
| Maximum Power (Pmax) | 200W ±3% |
| Operating Voltage (Vmpp) | 30.6V |
| Operating Current (Impp) | 6.54A |
| Open-Circuit Voltage (Voc) | 36.2V |
| Short-Circuit Current (Isc) | 7.19A |
| Maximum System Voltage | DC 1000V |
| Cell Efficiency | Up to 25.6% (N-Type Monocrystalline) |
| Product Size | 1262 x 764 x 30mm (49.69" x 30.08" x 1.18") |
| Weight | 21lb (approx. 9.5kg) per panel |
| Materials |
|
| IP Rating | IP68 (Junction Box & Connectors) |
| Working Temperature | -45°C to +85°C |
| Features |
|
| Suitable For |
|
| Accessories | IP68 Connectors, Pre-drilled holes for easy installation |
